Andrew Heliax / RFS / Draka (1/2'' , 7/8'', 1/4'' , 1 5/8'') RF Haberleşme Kablo, 50 Ohm. GSM kablosu
|
GSM R/L istasyonları NEC vs RL IF kablosu. Ayrıca wireless uygulamalarda low loss düşük kayıplı anten kablosu olarak anten ile access point arasında kullanılabilir.
OCC , 5D-FB IF Cable PDF
|
|
RF Jumper (Atlama Kablosu) |
Low Loss RF Kablolar |
RF Adaptörler |
1/2'' ve 7/8'' RF Camper , Super Flexible Jumper
|

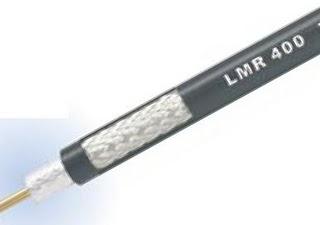

LMR Kablo ( LMR240, LMR400, LMR500, LMR600 ). Düşük kayıplı 50 ohm kablo
|
N tipi & 7/16 adapter coupler
|
RF Süperflex Kablo |
CELLMAX-O-25 Anten |
CELLMAX-D-25 |
|
PDF
CELLMAX-O-25 Omnidirectional In-building Antenna, 806–960 MHz and 1710–2700 MHz. indoor anten
|
PDF
CELLMAX-D-25 Omnidirectional In-building Antenna, 806–960 MHz and 1710–2200 MHz. indoor anten
|
LDF1RN-50 |
LDF5-50A & LDF5RN-50A |
LDF4-50A & LDF4RK-50A |
LDF1-50, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 1/4 in, gray non-halogenated, fire retardant polyolefin jacket
|
LDF5-50A: 7/8” Standard Cable, Standard PE Jacket & LDF5RN-50A : 7/8” Fire Retardant Jacket (CATVX or CATVR)
|
1/2” Standard Cable, Standard PE Jacket & 1/2” Fire Retardant Jacket (CATVX or CATVR)
|
LDF7-50A |
LDF4-75 |
N Konnektör, RG213 |
1-5/8" Heliax kablo
|
75 Ohm, Standard kablo
|
N Konnektör RG213 Kablo için.RG213 Kablo Uyumlu
N Konnektör -
N Tipi-Erkek Sıkmalı & Vidalı Konnektör
|
L4PNM-RC |
L4PDM-RC |
L5PDM-RPC |
Type N Male Positive Stop™ for 1/2
in LDF4-50A cable. Replaced By L4TNM-PS
|
7-16 DIN Male RingFlare™ for 1/2 in
LDF4-50A cable. Replaced By L4TDM-PS. Andrew 1/2 Kablo İçin 7/16 Konnektör
|
7-16 DIN Male OnePiece™
for 7/8 in LDF5-50A cable. Replaced By L5TDM-PS
|
L5PNM-RPC |
L47S |
L47R |
Type N Male OnePiece™ for 7/8 in
LDF5-50A cable. Type N Male OnePiece™ for 7/8 in LDF5-50A cable. Replaced By L5TNM-PS. Andrew 7/8 Kablo İçin N Konnektör
|
7/8 in EIA Flange for 1-5/8 in
LDF7-50 cable.Andrew 1-5/8 Kablo İçin Konnektör _ L47S
|
1-5/8 in EIA Flange for 1-5/8 in LDF7-50. Andrew 1-5/8 Kablo İçin Flonge Konnektör
|
7/16 DIN RF Connector |
7/16 DIN RF Connector |
N Male RF |

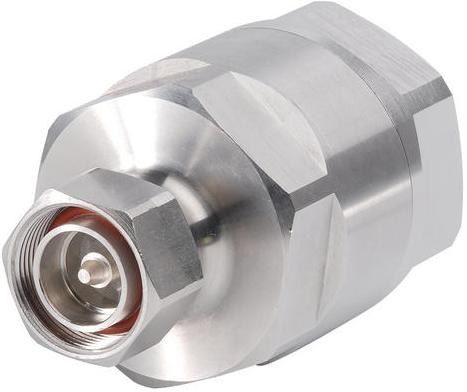

1 5/8'' female 7/16 RF Connector, AL7DM-PS
|
7/8'' male 7/16 RF Konnektör, AL5DM-PS
|
1/2'' male N-type RF Connector L4TNM-PS. Andrew 1/2 Kablo İçin N Konnektör _ L4TNM-PS
|
RF Sonlandırıcı, N Tipi |
RF Kablo Hazırlama Aracı |
Groundig Kit Hazırlama |
Andrew 245573A Termination, 10 Watt, Type N Male & Termination, 50 Watt, Type 7/16 Male. DC-3GHz
|
 PDF
1/2 RF Kablo ( MCPT-L4 ) ve 7/8 RF Kablo (MCPT-78) tools
|
 PDF
GKT-78A (LDF5-50A, VXL5-50, AVA5-50, AL5-50) , GKT-L4A ( LDF4-50), GKT-114A (LDF6-50, VXL6-50) , GKT-158A (LDF7-50, VXL7-50, AVA7-50, AL7-50) El aletleri
|
Hybrid Coupler MCM 2*2 |
Low-loss Power Tappers |
Low-loss Power Splitter |
 PDF
H-3-CPUS-N: 3 dB Hybrid Coupler, 800-2500 MHz, Type N female, MCM 2X2, N Female, maksimum power 120 W
|
 PDF

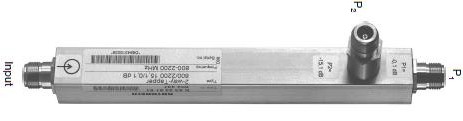

Kathrein Multi-band Low-loss Power Tappers, Dahili kullanım için. Maksimum power 100 W. Konnektör N dişi. 790 – 2500 MHz. 860 10020 : 2-way Tapper 790–2500 7.0 /1.0dB & 860 10021 2-way Tapper 790–2500 10.4/0.4dB & 860 10022 : 2-way Tapper 790–2500 15.1/0.1dB
|
 PDF
Andrew Power Splitter S-2-CPUS-L-N : Multiband, 2-Way
Low Power Splitter, 800–2500 MHz – N Connectors & S-3-CPUS-L-N :3-Way Low Power Splitter, 800 – 2500 MHz, Type N & S-4-CPUS-L-N :4-Way Low Power Splitter, 800 – 2500 MHz, Type N
|
Hybrid Multi Coupler, MCM 4*4 |
Directional Coupler , Tapper |
CROSSBAND COUPLERS |
 PDF
H-4X4-CPU-N: 4x4 High Power Hybrid Matrix, 800–2200 MHz, 4 giriş 4 çıkış. N Female Konnektör. Maksimum güç 60 W. indoor ve outdoor uygulamalarda kullanılır. MCM 4X4
|
 PDF

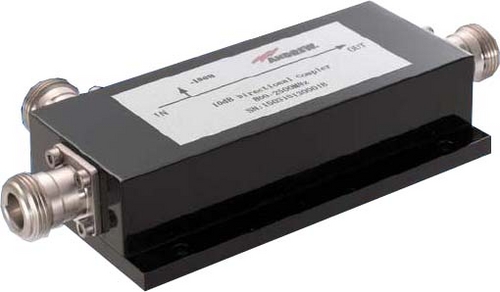

C-6-CPUS-N & C-10-CPUS-N & C-13-CPUS-N & C-15-CPUS-N & C-20-CPUS-N & C-30-CPUS-N
|
 PDF
641280DF 806-960 MHz, 1710-2170 MHZ, CROSSBAND COUPLERS. 7/16 DIN Female connector
|
Low-loss Power Splitters |
RFS Directional Coupler |
|
 PDF

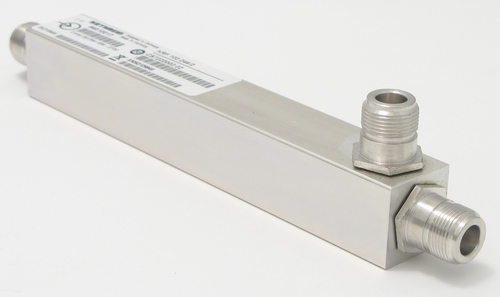

Kathrein Multi-band Low-loss Power Splitters , 2-way Splitter 800–2500 , 3-way Splitter 800–2500, 4-way Splitter 800–2500 2-3-4 yollu power splitter, bölücü
|
 PDF

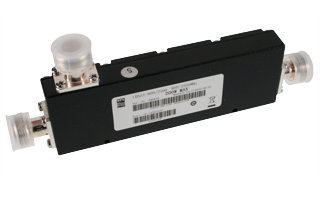

| CDS7I-800/2700 : Tapper 7dB Directional Coupler N Female |
| CDS10I-800/2701 : Tapper 10dB Directional Coupler N Female |
| CDS15I-800/2702 : Tapper 15dB Directional Coupler N Female |
|
 PDF
T50M7/1.5 , 1.5Watt , 7/16 Erkek Konnektör Sonlandırma. Ayrıca 7/16 25/50Watt hem dişi hemde erkek konnektörler
|
7/16 Male Female Surge Arrestor |
N Type Gas Discharge Surge Protector |
SMA Gas Tube Surge Protector
|
 RFS
Yıldırım Koruyucu, Arrestor ( 7/16-male to 7/16-female ). 698 to 2200 MHz. 7-16 DIN Female (protected), yıldırım tutucu
|
| PDF |
| N-Male to N-Female DC6G Surge Arrester ( Yıldırım Tutucu ) |
| Frequency range (MHz) : 0 ～ 5800 |
| Max, peak power (W) : 200 |
| Discharge capacity: (kA , 8/20μS wave) : 10 |
| Discharge voltage (V) : 75/90/150/230 |
| Impedance (Ω) : 50 |
| Residual voltage (1kV/μs) : ＜600 |
| Insulation resistance (MΩ) : ＞5000 |
| Insertion loss (dB) : ＜0.50 |
| V.S.W.R : ＜1.40 |
| Waterproof : IP67 |
|
| CLR-SA-SMF-G |
| SMA Male to SMA Female |
| Gas Tube Surge Arrester |
|
Dummy Load, N(F), 25W |
Dummy Load, N(F), 50W |
|
Dummy Load , RF Sonlandırma, 50 Ohm, N dişi (N female) konnektör, Soğutuculu Terminasyon, Kathrein K6226201/T50FN/25 , 25 Watt
|

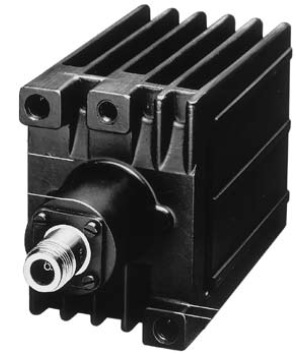

Kathrein K6226301/T50FN/50 , 50Watt , 50 ohm, RF Sonlandırma, N dişi konnektör, Soğutuculu
|
10 watt , NF
|
RFS LCF 1/2 Cellflex Kablo |
N tipi Zayıflatıcı |
|
 PDF
1/2" CELLFLEX® Low-Loss Foam-Dielectric Coaxial Cable. Düşük kayıp , Düşük VSWR. Köpük yalıtkan.
|
N Male-N Female , , 20W , 25W , 30W , 50W , 100W
|
DIN Female-DIN Female , 100Watt
|
RFS 7/8 RF Kablo - 50Ohm |
RFS Power Splitter , 2-3-4 Yollu |
Dummy Load |
PDF
LCF78-50JA : 7/8" CELLFLEX® Low-Loss Foam-Dielectric Coaxial Cable
|
2-Way Low Power Splitter, 800 – 2500 MHz, Type N & 3-Way Low Power Splitter, 800 – 2500 MHz, Type N & 4-Way Low Power Splitter, 800 – 2500 MHz, Type N
|
SWLN4183A : 50Watt N male RF terminatör, Dummy Load , Kapama -Sonlandırma . 70mm x 70mm x 160mm
|
Andrew Süperflex Kablo |
Andrew Süperflex Kablo |
Jumper Kablosu |

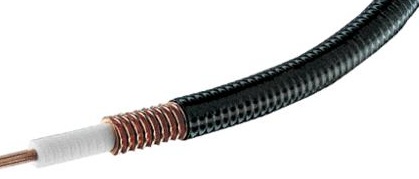

FSJ4-50B | 1/2” Standard Cable, Standard Jacket | Superflex Cable
|
FSJ4RK-50B | 1/2” Fire Retardant Jacket | Superflex Cable
|
Jumper cable(1,5 /2m) 7/16con. male to male Jumper cable( 2m ) 7/16con. male to female Jumper cable( 2m ) 7/16con. male to male( 90° ) Jumper cable( 3m ) 7/16con. male to male Jumper cable( 3m ) 7/16con. male to female Jumper cable( 3m ) 7/16con. male to male( 90° ) Jumper cable( 9m ) 7/16con. male to female
|
RF Feeder Kablo 1/2 |
RF Feeder Kablo 7/8 |
 PDF
Hengxin HCAAY-50-12 | 1/2” RF Feeder Kablo, 50 ohm
|
 PDF
Hengxin HCTAY-50-22 | 7/8” RF Feeder Kablo, 50ohm
|
Spinner - 1/2" Prep Tool |
Spinner - 7/8" Prep Tool
|
| Spinner Kodu: BN541317 |
| 1/2" CELLFLEX LCF12-50 kabloların ucuna konnektör yapmadan önce, kabloyu hazırlamak için gerekli tek alettir. |
|
| Spinner Kodu: BN541318 |
| 7/8" CELLFLEX LCF78-50 kabloların ucuna konnektör yapmadan önce, kabloyu hazırlamak için gerekli tek alettir. |
|
|
|
